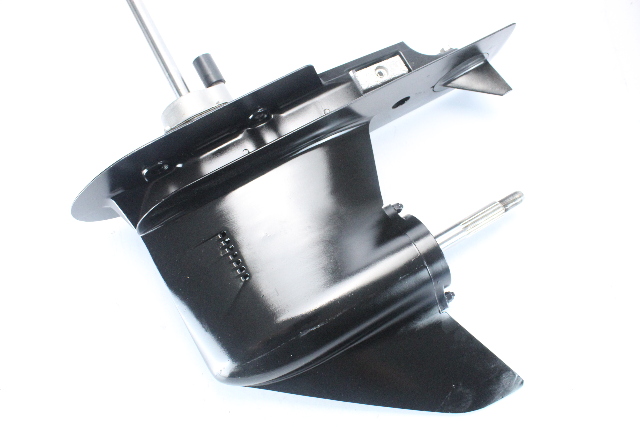

1998 & UP L3 Mercury 20" Lower Unit 75 80 85 90 HP 2.31:1 Ratio 1 YEAR WARRANTY


$1,325.00
International Shipping Quote
  • Brand: Mercury
  • Size: 75 80 85 90 HP
  • Color: Black
  • Style: L3 - 13/15 splines - 2.31:1 - 2 Stroke - 6 Jaw
  • Condition: Used
  • Notes: New Impeller
  • SKU: 55178 LRU
  • Manufacturer Part Number: 1667-9011J15 9011G1 9011G57 9011J18
  • Country of Manufacture: United States
  • Motor & Engine Type: Mercury
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, Black
  • Inventory Number: 55178 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $75.00

KEY POINTS:
  • 20 inch Driveshaft
  • Fully resealed and pressure checked
  • Extended Warranty with exchange of a spinning core (see below for more info)
Additional Info

  • Shifts and spins smoothly without binding
  • Shafts checked for straightness
  • Driveshaft splines show little wear
  • Gears & clutch are in good condition with very light wear on clutch surfaces
  • Freshwater Condition
  • New Impeller installed
  • Fully Resealed & Pressure checked to 12 PSI

Gear Ratio: 2.31:1

Driveshaft splines: 13

Propeller shaft splines: 15

Driveshaft length from the top of the water pump to top of the shaft: 20-1/4"

Please add oil before use. This unit is shipped empty.

This lower unit qualifies for a 1 year warranty.  The warranty is validated by your core.  In order to qualify for this, you must send in that core.  Both shafts must spin and it must be complete.  We will send a label for you to return your core in our box after receipt of the unit you’ve purchased.  If you do not have a spinning core, you may call in after your purchase and buy the 1 year warranty for 10% of the purchase price.  If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois
Fits:
1998 & UP  - 75 80 90 HP - 6 Jaw Clutch.  This fits carburetor models from 98 on ONLY.

**Please note that this lower unit will also fit a Force 90 HP from 1990-1997 using  6 jaw gears.**

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
